Bill Swan

I have done 10 SBS2011 to 2016 all fine and this is a Rouge upgrade

On new 2016 server installing exchange I get the same error, so I proceeded to just PrepareSchema on the Essentials server so there is no DNS issue and get the same error ?? ( running on Essentials server should not be an issue as it is not installing Exchange Server just preparing AD but cannot comment but getting same error on proposed exchange server )

The Active Directory schema isn't up-to-date, and this user account isn't a member of the 'Schema Admins' and/or
'Enterprise Admins' groups.
For more information, visit: http://technet.microsoft.com/library(EXCHG.150)/ms.exch.setupreadiness.SchemaUpdateRequired.aspx

Setup encountered a problem while validating the state of Active Directory: Couldn't find the Enterprise Organization
container. See the Exchange setup log for more information on this error.
For more information, visit: http://technet.microsoft.com/library(EXCHG.150)/ms.exch.setupreadiness.AdInitErrorRule.aspx

The forest functional level of the current Active Directory forest is not Windows Server 2003 native or later. To
install Exchange Server 2016, the forest functional level must be at least Windows Server 2003 native.
For more information, visit: http://technet.microsoft.com/library(EXCHG.150)/ms.exch.setupreadiness.ForestLevelNotWin2003Native.aspx

Either Active Directory doesn't exist, or it can't be contacted.
For more information, visit: http://technet.microsoft.com/library(EXCHG.150)/ms.exch.setupreadiness.CannotAccessAD.aspx


The Exchange Server setup operation didn't complete. More details can be found in ExchangeSetup.log located in the
<SystemDrive>:\ExchangeSetupLogs folder.



1. The user is a member of Schema Admin and Enterprise admin.. its the Administrator ! Yes administrator could be not a member but in SBS land it is and I even set priority group to Schema Admin when all other installs Administrator priority group was only user.

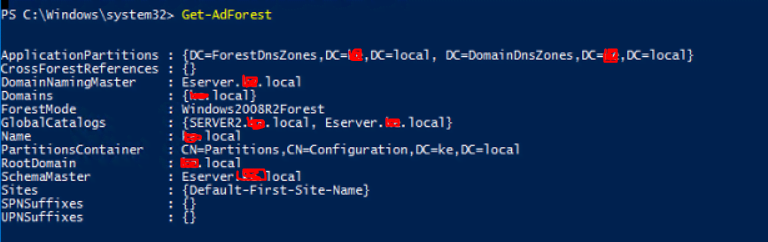

2. Forest is not 2003 or later.. Oh yes it is... see attached.. scrubbing out clients name 2 letters domain name.  Only difference with this site, could this be an issue ?

3. AD doesn't exist, Im doing it on the DC ?



The errors seem generic, seems if one error it produces all this but wondering if anyone had the issue and pointers? The forest level issue proves it, error says its not 2003 or later when it is.

Attached Files

asked12/28/2019 15:00
44 views
Add Comment
Bill Swan

Haha.. I missed one so can see domain is ke.. :-)

Mariette Knap

Pls, post an ipconfig /all from both servers?


replied 12/28/2019 16:00
Bill Swan

Hi M, thanks for replying at the weekend.. Im sure Im missing something but cant see it..

Essentials Server 2016.. On a Dell Server ( Exchange server is vm )

Windows IP Configuration

   Host Name . . . . . . . . . . . . : Eserver
   Primary Dns Suffix  . . . . . . . : ke.local
   Node Type . . . . . . . . . . . . : Hybrid
   IP Routing Enabled. . . . . . . . : No
   WINS Proxy Enabled. . . . . . . . : No
   DNS Suffix Search List. . . . . . : ke.local

Ethernet adapter vEthernet (Broadcom NetXtreme Gigabit Ethernet #2 - Virtual Switch):

   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Hyper-V Virtual Ethernet Adapter
   Physical Address. . . . . . . . . : 6C-2B-59-A7-9A-5B
   DHCP Enabled. . . . . . . . . . . : No
   Autoconfiguration Enabled . . . . : Yes
   IPv6 Address. . . . . . . . . . . : 2a02:c7f:c275:9600:b111:416f:e81d:365a(Preferred)
   IPv6 Address. . . . . . . . . . . : fde3:853e:4192:0:b111:416f:e81d:365a(Preferred)
   Link-local IPv6 Address . . . . . : fe80::b111:416f:e81d:365a%2(Preferred)
   IPv4 Address. . . . . . . . . . . : 192.168.1.3(Preferred)
   Subnet Mask . . . . . . . . . . . : 255.255.255.0
   Default Gateway . . . . . . . . . : fe80::9221:6ff:feef:69e9%2
                                       192.168.1.1
   DHCPv6 IAID . . . . . . . . . . . : 158083929
   DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-25-81-09-74-6C-2B-59-A7-9A-5A
   DNS Servers . . . . . . . . . . . : ::1
                                       192.168.1.2 ( this is SBS 2011 SERVER )
                                       127.0.0.1
   NetBIOS over Tcpip. . . . . . . . : Enabled

Tunnel adapter isatap.{3E7C48C7-A2BB-466D-96E9-7DC1D2E1BFA5}:

   Media State . . . . . . . . . . . : Media disconnected
   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Microsoft ISATAP Adapter #2
   Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP Enabled. . . . . . . . . . . : No
   Autoconfiguration Enabled . . . . : Yes





EXCHANGE SERVER..

Windows IP Configuration

   Host Name . . . . . . . . . . . . : Exchsvr
   Primary Dns Suffix  . . . . . . . : ke.local
   Node Type . . . . . . . . . . . . : Hybrid
   IP Routing Enabled. . . . . . . . : No
   WINS Proxy Enabled. . . . . . . . : No
   DNS Suffix Search List. . . . . . : ke.local

Ethernet adapter Ethernet:

   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Microsoft Hyper-V Network Adapter
   Physical Address. . . . . . . . . : 00-15-5D-01-03-03
   DHCP Enabled. . . . . . . . . . . : No
   Autoconfiguration Enabled . . . . : Yes
   IPv6 Address. . . . . . . . . . . : 2a02:c7f:c275:9600:c9e3:76e0:3766:1f0e(Preferred)
   IPv6 Address. . . . . . . . . . . : fde3:853e:4192:0:c9e3:76e0:3766:1f0e(Preferred)
   Link-local IPv6 Address . . . . . : fe80::c9e3:76e0:3766:1f0e%4(Preferred)
   IPv4 Address. . . . . . . . . . . : 192.168.1.4(Preferred)
   Subnet Mask . . . . . . . . . . . : 255.255.255.0
   Default Gateway . . . . . . . . . : fe80::9221:6ff:feef:69e9%4
                                       192.168.1.1
   DHCPv6 IAID . . . . . . . . . . . : 50337117
   DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-25-98-CC-F2-00-15-5D-01-03-03
   DNS Servers . . . . . . . . . . . : 192.168.1.3
                                       127.0.0.1
   NetBIOS over Tcpip. . . . . . . . : Enabled

Tunnel adapter isatap.{906D391E-8732-4F56-86B5-9C489AFDD2FE}:

   Media State . . . . . . . . . . . : Media disconnected
   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Microsoft ISATAP Adapter #2
   Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP Enabled. . . . . . . . . . . : No
   Autoconfiguration Enabled . . . . : Yes




p.s Holidays and this damn issue could not respond to desktop icons issue and yes offline files is enabled.. will do now.. haha


replied 12/28/2019 16:36
Last Activity 12/29/2019 18:06
