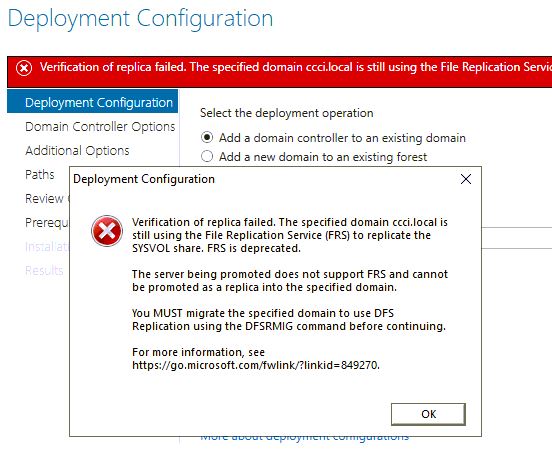

After raising the existing domain and forest functional levels to 2016 from 2003 I received the attached error while configuring the new domain controller (CCCIAD). The old domain controller (CCCIserver) was running FRS and had not been upgraded to DFS.
I started the FRS to DFS upgrade but first checked for journal wrap on the old (CCCIserver) and found journal wrap errors going back to last year. Error below:
*****************************************************************************************************************************************************************
The File Replication Service has detected that the replica set "DOMAIN SYSTEM VOLUME (SYSVOL SHARE)" is in JRNL_WRAP_ERROR.
Replica set name is : "DOMAIN SYSTEM VOLUME (SYSVOL SHARE)"
Replica root path is : "c:\windows\sysvol\domain"
Replica root volume is : "\\.\C:"
A Replica set hits JRNL_WRAP_ERROR when the record that it is trying to read from the NTFS USN journal is not found. This can occur because of one of the following reasons.
[1] Volume "\\.\C:" has been formatted.
[2] The NTFS USN journal on volume "\\.\C:" has been deleted.
[3] The NTFS USN journal on volume "\\.\C:" has been truncated. Chkdsk can truncate the journal if it finds corrupt entries at the end of the journal.
[4] File Replication Service was not running on this computer for a long time.
[5] File Replication Service could not keep up with the rate of Disk IO activity on "\\.\C:".
Setting the "Enable Journal Wrap Automatic Restore" registry parameter to 1 will cause the following recovery steps to be taken to automatically recover from this error state.
[1] At the first poll, which will occur in 5 minutes, this computer will be deleted from the replica set. If you do not want to wait 5 minutes, then run "net stop ntfrs" followed by "net start ntfrs" to restart the File Replication Service.
[2] At the poll following the deletion this computer will be re-added to the replica set. The re-addition will trigger a full tree sync for the replica set.
WARNING: During the recovery process data in the replica tree may be unavailable. You should reset the registry parameter described above to 0 to prevent automatic recovery from making the data unexpectedly unavailable if this error condition occurs again.
To change this registry parameter, run regedit.
Click on Start, Run and type regedit.
Expand HKEY_LOCAL_MACHINE.
Click down the key path:
"System\CurrentControlSet\Services\NtFrs\Parameters"
Double click on the value name
"Enable Journal Wrap Automatic Restore"
and update the value.
If the value name is not present you may add it with the New->DWORD Value function under the Edit Menu item. Type the value name exactly as shown above.
*****************************************************************************************************************************************************************

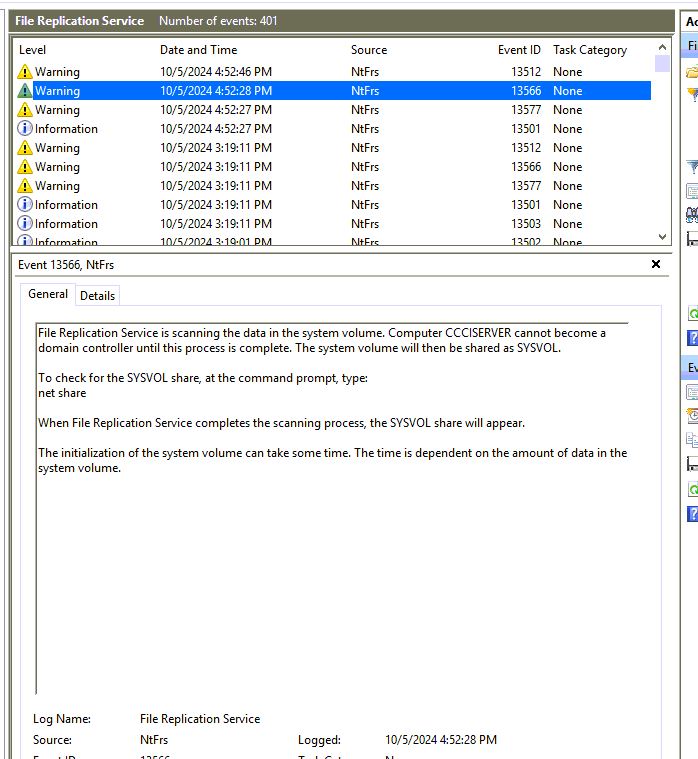

I applied the procedure "Setting the "Enable Journal Wrap Automatic Restore" registry parameter to 1" shown above at 2:58 pm EDT. Last activity in event viewer was at 3:19 PM EDT shown below. Nothing since then .
*****************************************************************************************************************************************************************
File Replication Service is scanning the data in the system volume. Computer CCCISERVER cannot become a domain controller until this process is complete. The system volume will then be shared as SYSVOL.
To check for the SYSVOL share, at the command prompt, type:
net share
When File Replication Service completes the scanning process, the SYSVOL share will appear.
The initialization of the system volume can take some time. The time is dependent on the amount of data in the system volume.
*****************************************************************************************************************************************************************
Time now is 425 pm EDT and no change. Sysvol share still not showing up in "net share" results.
